| 加工長度 | 2500mm |
|---|---|
| 加工高度 | 50mm |
| 產地 | 中國東莞 |
| 產品類型 | 全新 |
| 產品認證 | CCC |
| 電源電壓 | 380V |
| 電源類型 | 交流電源 |
| 額定電壓 | 380V |
| 額定輸入功率 | 12KW |
| 高度 | 50 |
| 工作形式 | 全自動 |
| 規格 | 1300*2500 |
| 空載轉速 | 24000rpm |
| 控制方式 | 閉環控制 |

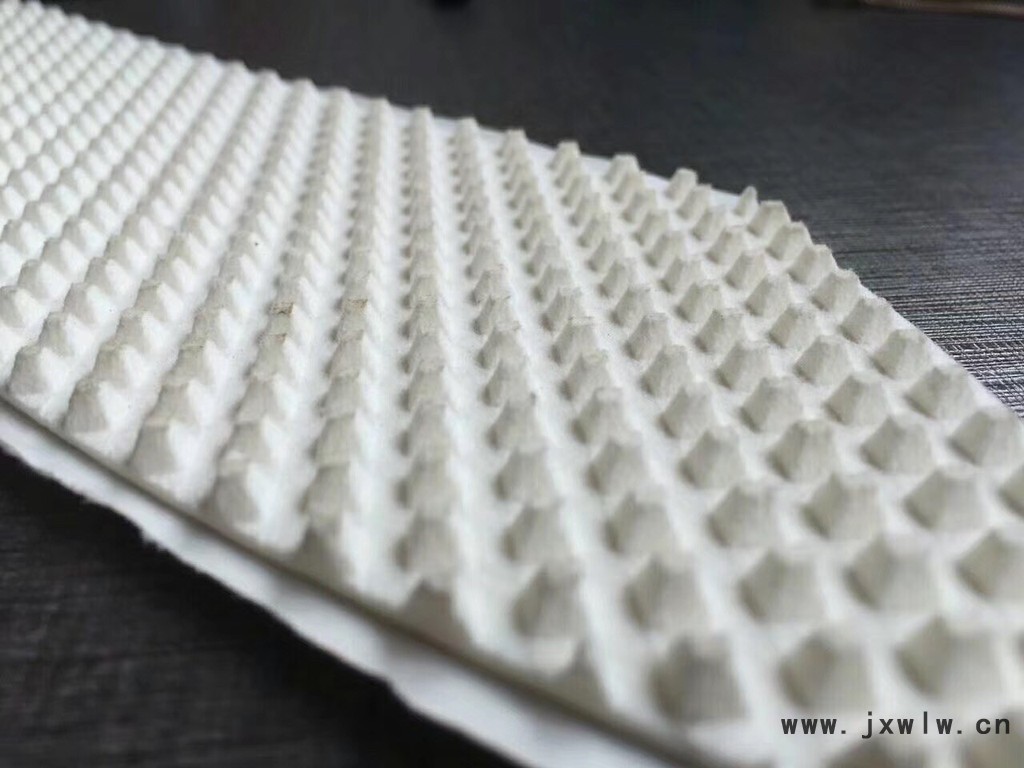

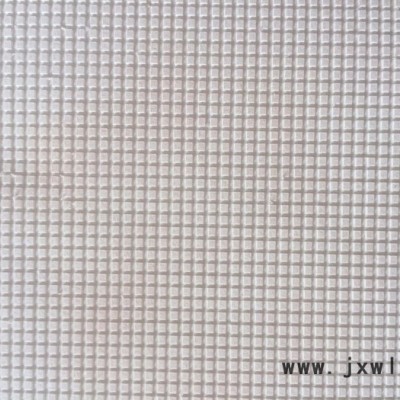

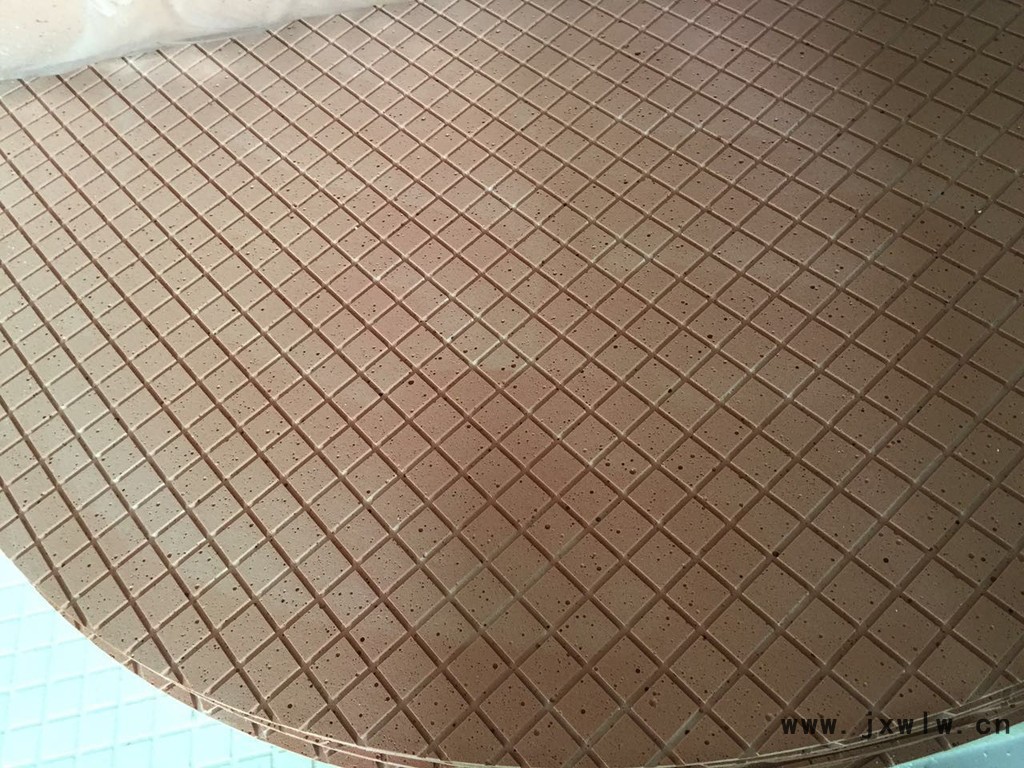

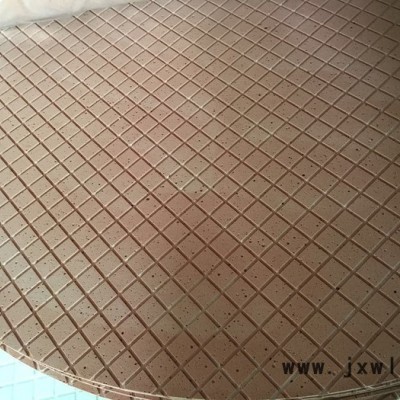

| 適用范圍 | 聚氨酯V型開槽 拋光皮V型開槽 拋光墊開槽機 聚氨酯拋光皮開槽機 打磨片開槽機 手機屏幕拋光皮開槽機 |
| 執行標準 | 國標 |
| 重量 | 2500 |
| 回轉數 | 24000rpm |
| 銑刀直徑 | 100 |
| 主軸鉆速 | 24000rmp |
| 套爪夾頭 | 25.4 |
| 最大加工寬度 | 1300mm |
| 品牌 | 麥克德 |
| 型號 | MKD-1325-P |
| 加工定制 | 是 |
機型解讀Model interpretation

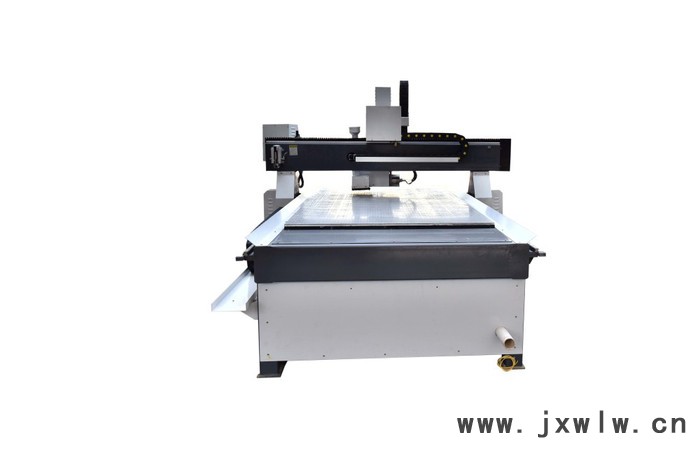

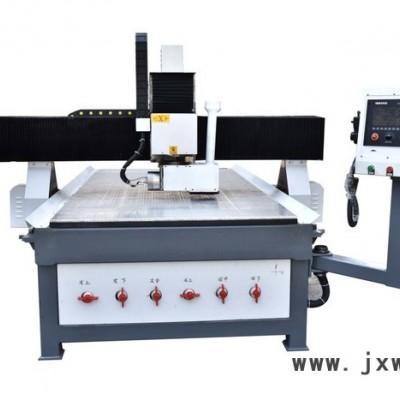

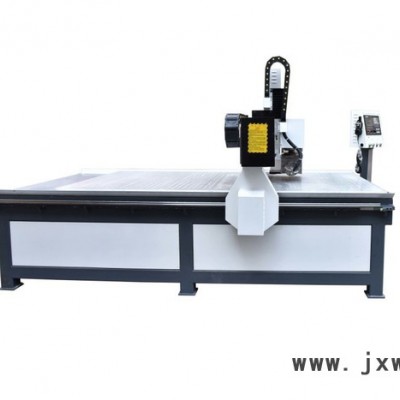

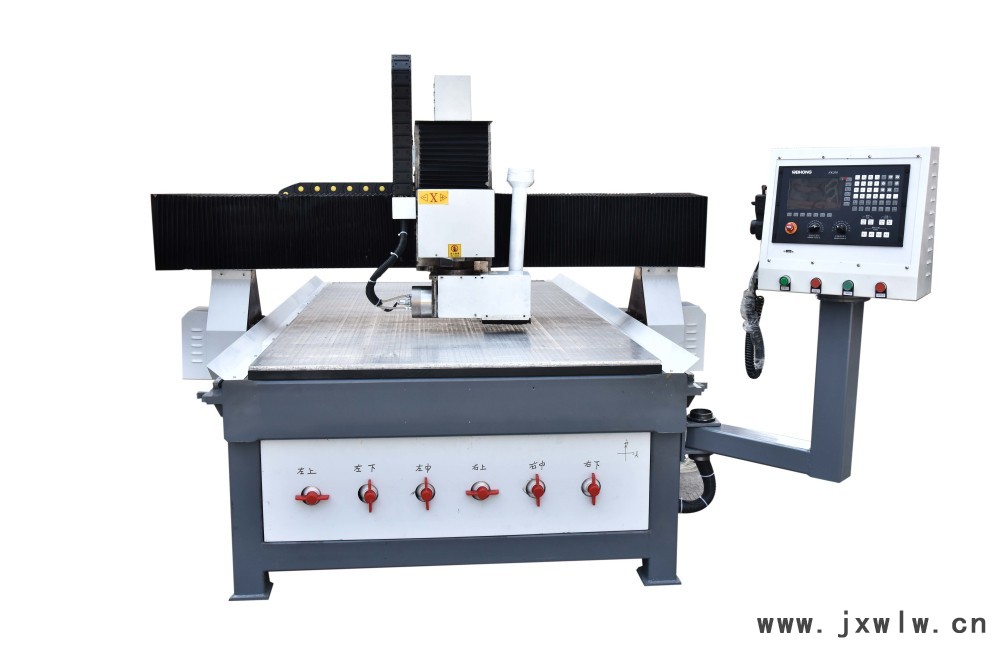

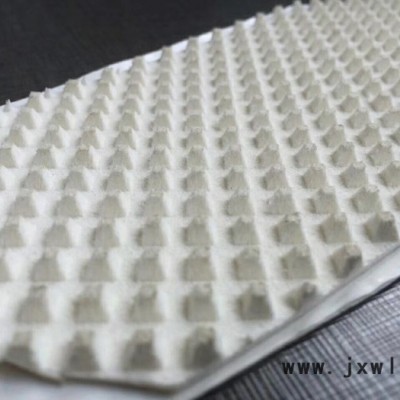

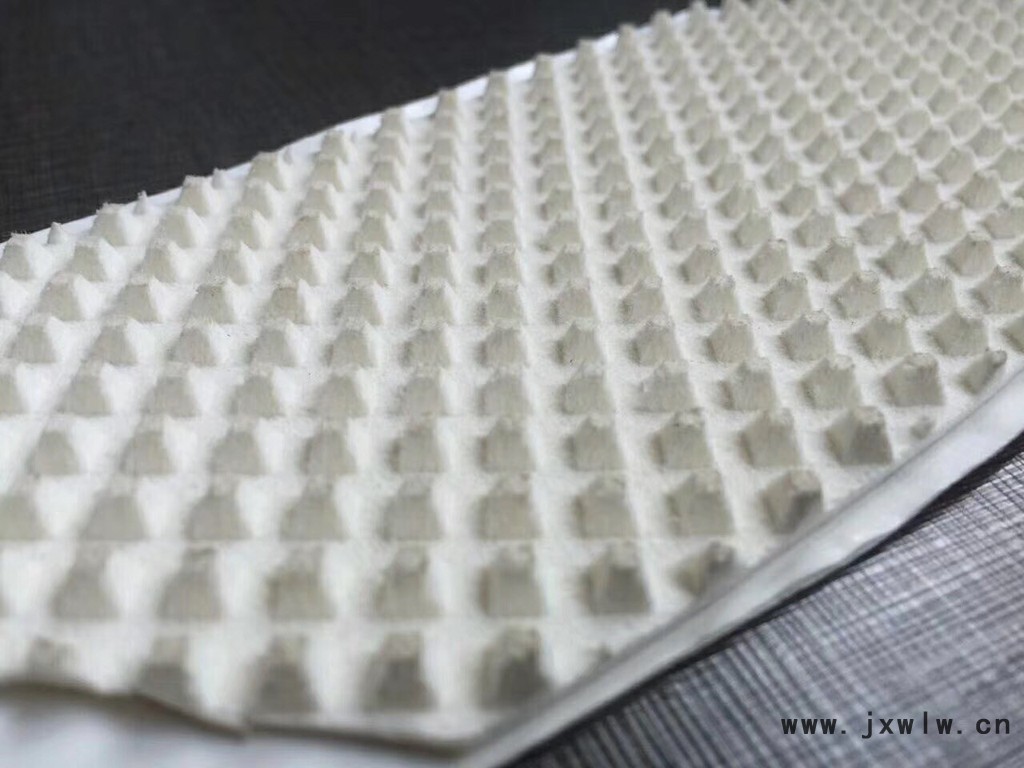

Mkd-1325-P系列設備是一款重型聚氨酯拋光皮V型鋸片開槽設備，鋸片開槽機是專業針對聚氨酯拋光皮V型開槽專業設計，高速度，高品質，高性價比，空程速度**高可達15m/min，加工速度**高可達10米/分，適用于聚氨酯開槽機 拋光皮V型開槽機 聚氨酯拋光皮開槽機 玻璃磨片開槽機！X、Z軸配有防塵罩設計，優先防止在加工過程中水、粉塵、雜物等飛濺到軌道和其他傳動件上，以免生銹和人員撞傷。
Mkd-1325-P series equipment is a heavypolyurethane polishing leather V sawing equipment. The sawing machine isspecialized in the professional design of V slotting of polyurethane polishingskin. High speed, high quality, high performance price ratio, the highest speedof air distance can reach 15m/min, the maximum processing speed can reach 10meters per cent, suitable for polyurethane slotting machine polishing skin. Vtype slotting machine polyurethane polishing skin grooving machine glassgrooving slotting machine! X, Z shaft is equipped with dust cover design, andthe priority is to prevent the splashing of water, dust and sundries to trackand other transmission parts in the process of processing, so as to avoid rustand personnel bruising.
性能特點Performance features
1. 鋼架焊接震動時效及熱處理加硬，經CNC平整加工，確保機床剛性耐用不變形；
The steel frame is welded with vibration aging and heattreatment hardening, which is processed by CNC flat to ensure rigidity,durability and non-deformation of the machine tool
2. 進口高精度導軌、齒條，原廠驅動及電機，機器運行穩定、速度快、工作噪音??；
imported high-precision guide rail and rack, originalfactory drive and motor, stable operation, fast speed and low working noise
3. 采用品牌電器元器件、高柔性屏蔽拖鏈電纜線，使其抗干擾能力強、故障率極低。
use brand electrical components and high flexible shieldeddrag chain cable to make it strong anti-interference ability and low failurerate.
適用行業Apply to industry
石材雕刻機廣泛應用于石材刻字、石材浮雕，瓷磚雕刻，瓷磚背景墻、石材背景墻，幕墻，墓碑，功德碑，石材藝術品加工等。
Stone engraving machine is widely used instone carving, stone relief, ceramic tile engraving, tile background wall,stone background wall, curtain wall, tombstone, stele, stone art processing,etc.
技術參數Technicalparameters
| 設備型號 | Equipment model | MKD-1325-P | ||
| 工作行程（X、Y、Z） | Work schedule (X, Y, Z) | 1550*2530*50mm | ||
| 平臺尺寸 | Platform size | 1300*2600mm | ||
| 空程速度 | Idle speed | 15000mm/min | ||
| 加工速度 | Processing speed | 8000mm/min | ||
| 主軸轉速 | Spindle speed | 24000rpm | ||
| 主軸功率 | Spindle power | 5.5KW | ||
| 重復定位精度 | Repeated positioning accuracy | ±0.025(300mm) | ||
| 加工精度 | The machining accuracy | ±0.08(300mm) | ||
| 出力軸 | The output shaft | 臺灣臺達伺服電機 | ||
|
運動配置（龍門動） Sportsconfiguration (gantry movement)
| X、Y高精密斜齒，臺灣上銀25導軌（銀泰） X, Y high precision helical teeth, Taiwan HIWIN（PMI） 25 guide linear | |||
| Z臺灣TBI絲桿，臺灣上銀25導軌（銀泰） Z Taiwan TBI ball screw, TaiwanHIWIN（PMI） 25 guide linear | ||||
| 工作電源 | Working power supply | AC-220V/380V±5% 50~60Hz | ||
| 整機重量 | whole machine weight | 2500KG | ||
| 外形尺寸 | Overall dimensions | 3000*2250*1680 | ||
