| 電流 | 直流 |
|---|---|
| 額定頻率 | 50/60 |
| 工作形式 | 點焊 |
| 頻段 | 中頻 |
| 驅動形式 | 自動 |
| 用途 | 割炬 |
| 最大短路電流 | 29000 |
| 作用對象 | 金屬 |
| 作用原理 | 逆變 |
| 焊接直徑 | 25 |
| 焊接原理 | 對焊 |
| 電極行程 | 50 |
| 品牌 | 德力 |
| 型號 | PSC系列CNC數控全自動銅管與鋁管調直切斷機 |

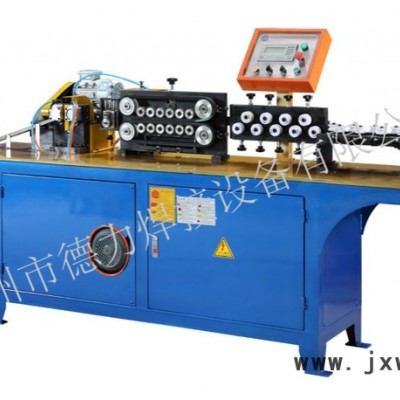

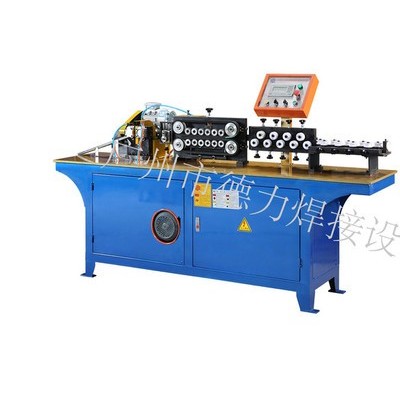

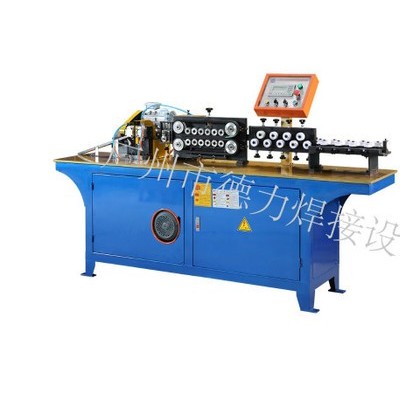

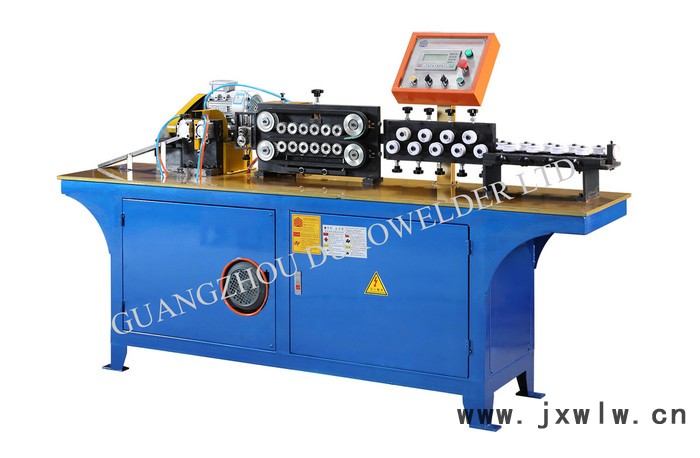

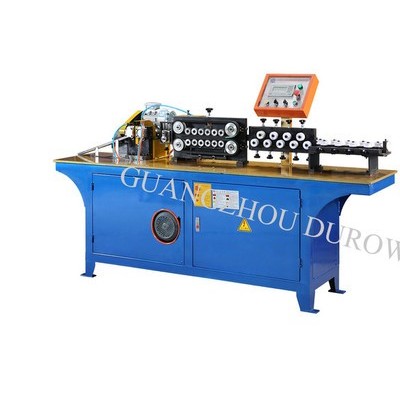

PSC系列CNC數控全自動銅管與鋁管調直切斷機
PSC Series CNC Automatic Copper Pipe & Aluminum Pipe Straightening and Cutting Machine
主要功能及應用
該設備屬于一種定長開料的管類設備，主要用于按照設定尺寸，分切各種尺寸，各種壁厚的銅管和鋁管。根據不同的后續加工需要，“旋轉無屑切割”或者“高速鋸片切割”，任意可選。
操作簡單，管材切口整齊，平滑，無毛刺。
配備“雙向動力放料架”，具有氣動剎車功能，保證送管放料與切管的同步性，能否有效防止料盤因慣性作用而造成突然放料過長，過快，而損傷管材的現象，進一步保證了管類的分切質量。
Main Characteristics and Applications
The device belongs to one kind of fixed length and cutting tube equipment,mainly used for cutting various sizes and wall thickness of copper pipe and aluminum pipe into set length accordingly.
Depending on the subsequent processing needs, can choose “Rotary Chipless Cutting” or “High Speed Saw Blade Cutting” relatively.
Simple operation, pipe cutting edge smooth and no burr.
Cooperated with “Bidirectional Pipe Decoiler”,with pneumatic brake function,ensure the synchronism of pipe feeding and pipe cutting,
can effectively prevent pipe damaged phenomenon of feed the tube suddenly too long or too fast due to inertia effect,further ensure the tube cutting quality.
主要技術參數
Main Technical Parameters
設備型號 Machine Model | PSC-12.7MM | PSC-19.05MM | PSC-25.4MM |
銅管與鋁管的最大開料直徑 Max Copper&Al Pipe Diameter | 12.7MM | 19.05MM | 25.4MM |
最大管子壁厚 Max Pipe Thickness | 5.0MM | ||
最小開料長度 Min Cutting Length | 25MM | ||
最大開料長度 Max Cutting Length | 8000MM | 10000MM | |
送料速度 Tube Feeding Speed | 0-60Meter/Minute 0-60米/分鐘 | ||
開料切割方式 Cutting Mode | 旋轉無屑切割 或者 高速鋸片切割 Rotary Chipless Cutting or High Speed Saw Blade Cutting | ||
供應電源 Air Source | 0.4-0.7MPa | ||
輸入電壓Input Voltage | 220V / 380V / 440V / 480V, 50/60Hz | ||
設備重量Machine Weight | 850KG | 1050KG | 1250KG |
PSC系列CNC數控全自動銅管與鋁管調直切斷機
PSC Series CNC Automatic Copper Pipe & Aluminum Pipe Straightening and Cutting Machine
主要功能及應用
該設備屬于一種定長開料的管類設備，主要用于按照設定尺寸，分切各種尺寸，各種壁厚的銅管和鋁管。根據不同的后續加工需要，“旋轉無屑切割”或者“高速鋸片切割”，任意可選。
操作簡單，管材切口整齊，平滑，無毛刺。
配備“雙向動力放料架”，具有氣動剎車功能，保證送管放料與切管的同步性，能否有效防止料盤因慣性作用而造成突然放料過長，過快，而損傷管材的現象，進一步保證了管類的分切質量。
Main Characteristics and Applications
The device belongs to one kind of fixed length and cutting tube equipment,mainly used for cutting various sizes and wall thickness of copper pipe and aluminum pipe into set length accordingly.
Depending on the subsequent processing needs, can choose “Rotary Chipless Cutting” or “High Speed Saw Blade Cutting” relatively.
Simple operation, pipe cutting edge smooth and no burr.
Cooperated with “Bidirectional Pipe Decoiler”,with pneumatic brake function,ensure the synchronism of pipe feeding and pipe cutting,
can effectively prevent pipe damaged phenomenon of feed the tube suddenly too long or too fast due to inertia effect,further ensure the tube cutting quality.
主要技術參數
Main Technical Parameters
設備型號 Machine Model | PSC-12.7MM | PSC-19.05MM | PSC-25.4MM |
銅管與鋁管的最大開料直徑 Max Copper&Al Pipe Diameter | 12.7MM | 19.05MM | 25.4MM |
最大管子壁厚 Max Pipe Thickness | 5.0MM | ||
最小開料長度 Min Cutting Length | 25MM | ||
最大開料長度 Max Cutting Length | 8000MM | 10000MM | |
送料速度 Tube Feeding Speed | 0-60Meter/Minute 0-60米/分鐘 | ||
開料切割方式 Cutting Mode | 旋轉無屑切割 或者 高速鋸片切割 Rotary Chipless Cutting or High Speed Saw Blade Cutting | ||
供應電源 Air Source | 0.4-0.7MPa | ||
輸入電壓Input Voltage | 220V / 380V / 440V / 480V, 50/60Hz | ||
設備重量Machine Weight | 850KG | 1050KG | 1250KG |
